Water supply system in residential building (example for the lesson)

Product	InstalSystem 5
Type of article	SAMPLE PROJECT
Source for translation	2020-03-18

Project description

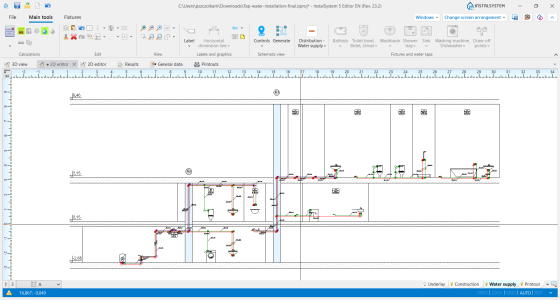

This article presents a simple project file of an internal tap water system (hot and cold water, circulation network) in a single-family house. The project is an example for the following lesson: Designing of water supply system installation. The lesson describes how to make such a project step by step.

•
•

Files to download and project information

Project files How to calculate downloaded file?	Initial state, isproj Hot and cold water supply and hot water circulation installation, isproj
Designed with	InstalSystem 5 rev 15.3
Required modules	Base module Tap water systems
Project range	Water supply installation
Used catalogues	Steel pipes, medium, DIN 2440 PEX (pipes and fittings) acc. to EN ISO 15875 Brass and steel pipe couplings and fittings Standard water taps and whiteware Miscellaneous fittings of any make Standard insulation catalogue Neutral valves catalogue-typical construction
Type of building	residential building with basement 3-storey
Building structure	Base drawing all storeys, dwg

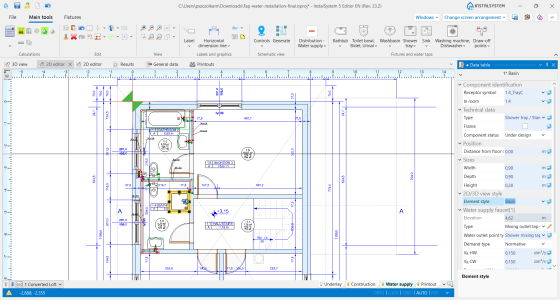

Drawings range	Plan view
Prepared by	www.instalsoft.com
Legal disclaimer	The whole file or parts of the project may be copied
Calculation results	Full printout, pdf Bill components, pdf
Drawing results	All storeys, dwg Basement, pdf Ground floor, pdf Attic floor, pdf
