Mechanical ventilation installation in residential building (example for the lesson)

Product	InstalSystem 5
Type of article	SAMPLE PROJECT
Source for translation	2025-12-15

Project description

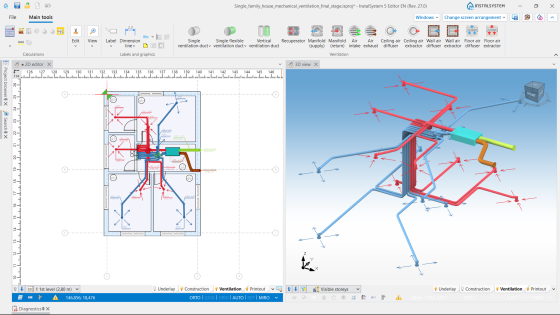

This article presents the project file of an mechanical ventilation installation in a single family house.
The project is an example for the following lesson: Designing mechanical ventilation installations. The lesson describes how to make such a project step by step.

•
•

Files to download and project information

Project files How to calculate downloaded file?	Initial state, isproj Mechanical ventilation installation, isproj
Designed with	InstalSystem 5.5 Rev. 29.3
Required modules	Base module Mechanical ventilation for residential buildings
Project range	Mechanical ventilation installation
Used catalogues	Neutral catalogs of air intakes, exhausts, diffusers, extractors Neutral plastic rigid and flexible pipes/ducts with manifolds Recuperators/ventilation units-sample solutions (International) Spiro type neutral rigid steel and flexible aluminum pipes/ducts Neutral silences for ventilation systems Standard insulation catalogue Duct air heaters/coolers - sample solutions
Type of building	Single family house
Building structure	Base drawing, dwg
Drawings range	Plan drawings
Prepared by	www.instalsoft.com
Legal disclaimer	The whole file or parts of the project may be copied

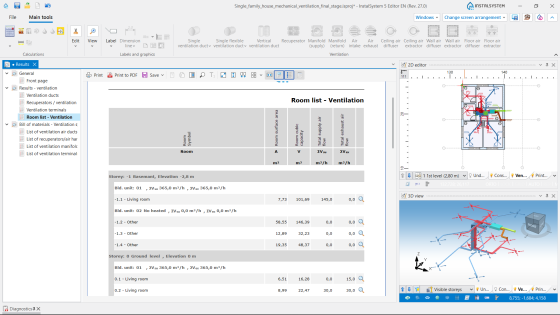

Calculation results	Full printout, xlsx Full printout, pdf Bill of materials, pdf
Drawing results	Single family house mechanical ventilation Ground level 1st level, dwg Single family house mechanical ventilation 3D, dwg Single family house mechanical ventilation Ground level, pdf Single family house mechanical ventilation 1st level, pdf
