Gravity sanitary sewage installations - quick design (example for the lesson)
Jump to navigation
Jump to search
| Product | InstalSystem 5 |
| Type of article | SAMPLE PROJECT |
| Source for translation | 2025-10-21 |
Project description

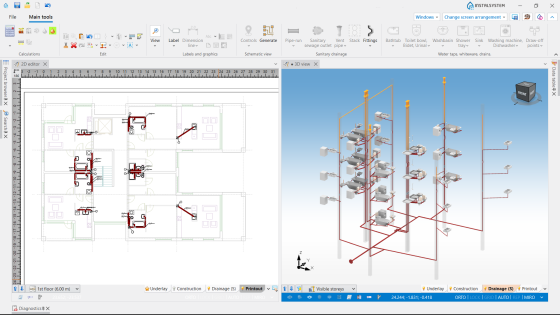

This article presents the quick project of an internal gravity sanitary sewage installation in a multifamily building.
The project is an example for the following lesson: Quick design of gravity sanitary sewage installations. The lesson describes how to make such a project step by step.
Files to download and project information
| Project files
|
Initial state, isproj Sewage installation, isproj |
| Designed with | InstalSystem 5.5 Rev. 29.B1 |
| Required modules | Base module Domestic wastewater gravity systems |
| Project range | Gravity sanitary sewage installation |
| Used catalogues |
Standard water taps and whiteware |
| Type of building | Multifamily building with basement 4-storey |
| Building structure | Base drawing basement, dwg Base drawing ground floor, dwg Base drawing floor, dwg Base drawing attic, dwg |
| Drawings range | Plan drawings |
| Prepared by |  www.instalsoft.com |
| Legal disclaimer | The whole file or parts of the project may be copied |
| Calculation results | Bill of materials, pdf |
| Drawing results |
