Water supply system in multifunctional building

From HelpSystem
Jump to navigation Jump to search


Product InstalSystem 5
Type of article SAMPLE PROJECT
Source for translation 2022-01-31


Project description

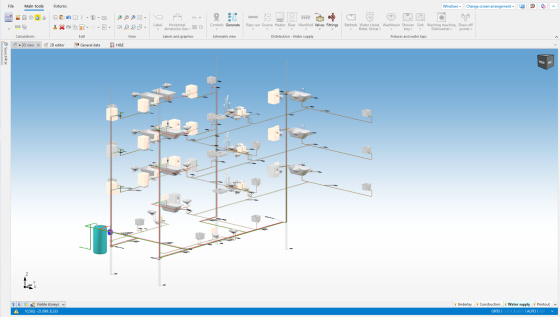

Project illustrates an example how to design water supply system in a multifunctional building.

Files to download and project information

Project files

How to calculate downloaded file?

Water supply system in a multifunctional building, isproj
Designed with InstalSystem 5
GOLD Rev. 22.0
Required modules Base module
Tap water systems
Project range Water supply system
Used catalogues

Steel pipes, medium, DIN 2440
PEX (pipes and fittings) acc. to EN ISO 15875
Brass and steel pipe couplings and fittings
Standard water taps and whiteware
Miscellaneous fittings of any make
Standard insulation catalogue
Neutral valves catalogue - typical construction

Type of building multifunctional building
with basement
5-storey
Building structure Base drawing basement, dwg
Base drawing ground floor, dwg
Base drawing floor, dwg
Base drawing attic, dwg

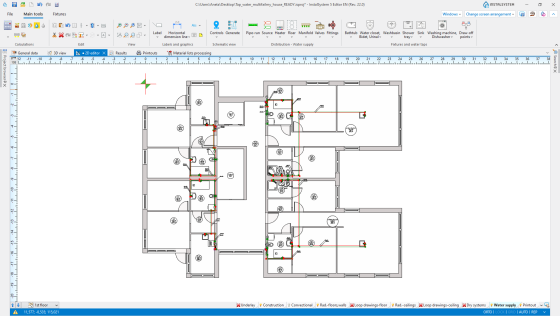

Drawings range Plan view
Prepared by Logo-instalsoft-new.png

www.instalsoft.com
Legal disclaimer The whole file or parts of the project may be copied
Calculation results Full printout, xls
Full printout, pdf
Bill components, pdf
General water supply system results, pdf
Drawing results Basement, dwg
Ground floor, dwg
First floor, dwg
Schema, dwg
Basement, Ground floor, 1st,2nd,3rd floor, pdf
