Radiant heating floor system in single family building

From HelpSystem
Jump to navigation Jump to search


Product InstalSystem 5
Type of article SAMPLE PROJECT
Source for translation 2022-07-28


Project description

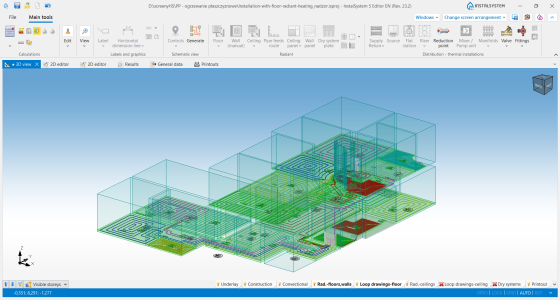

Example illustrates radiant heating installation with underfloor heating systems located in single family building.

Files to download and project information

Project files

How to calculate downloaded file?

Installation with underfloor radiant heating system in single family building, isproj
Designed with InstalSystem 5
Rev. 23.2
Required modules Base module
Radiant systems
Heating systems
Project range Radiant heating
Used catalogues

Basic radiant systems
Brass and steel pipe couplings and fittings
Copper pipes and fittings EN 1057
Miscellaneous fittings of any make
Standard insulation catalogue
Neutral valves catalogue-typical construction

Type of building single-family building
with no basement
2-storey
Building structure Base ground floor, pdf
Base first floor, pdf

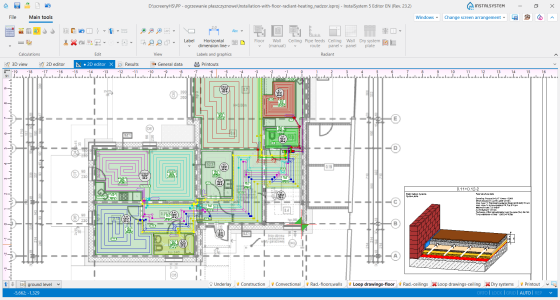

Drawings range Plan view
Prepared by Logo-instalsoft-new.png

www.instalsoft.com
Legal disclaimer The whole file or parts of the project may be copied
Calculation results Full printout, xls
Full printout, pdf
Bill components, pdf
Installation parameters, pdf
Drawing results Ground floor, dwg
First floor, dwg
Ground floor, pdf
First floor, pdf
