Radiant heating floor and wall system in single family building

From HelpSystem
Jump to navigation Jump to search
Product InstalSystem 5
Type of article SAMPLE PROJECT
Source for translation 2022-07-28


Project description

Example illustrates radiant heating installation with wall and underfloor heating systems located in 2-storey building with no basement.

Files to download and project information

Project files

How to calculate downloaded file?

Installation with underfloor and wall radiant heating system in single family building, isproj
Designed with InstalSystem 5
Rev. GOLD 23.2
Required modules Base module
Radiant systems
Heating systems
Project range Radiant heating
Used catalogues

Basic radiant systems
Brass and steel pipe couplings and fittings
Copper pipes and fittings EN 1057
Miscellaneous fittings of any make
Standard insulation catalogue
Neutral valves catalogue-typical construction

Type of building single-family building
with no basement
2-storey
Building structure Base ground floor, dwg
Base first floor, dwg
Drawings range Plan view
Prepared by Logo-instalsoft-new.png

www.instalsoft.com
Legal disclaimer The whole file or parts of the project may be copied
Calculation results Full printout, xls
Full printout, pdf
General heating results, pdf
Bill components, pdf
Installation parameters, pdf

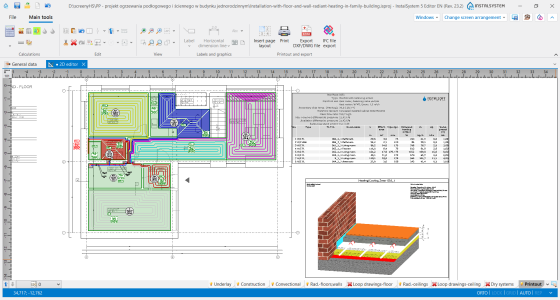

Drawing results Ground floor, dwg

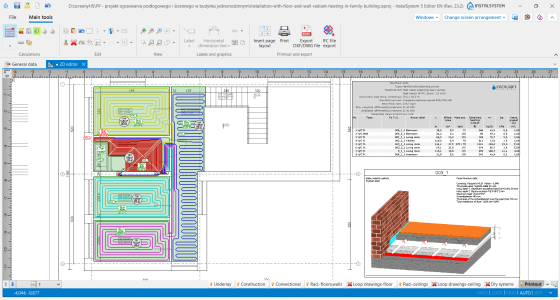

First floor, dwg
Ground floor, pdf
First floor, pdf
