How to eliminate diagnostic messages indicating insufficient insulation thickness of pipe-runs
Jump to navigation
Jump to search
Product | InstalSystem 5 |
Type of article | TIP&TRICK |
Source for translation | 2025-01-23 |
Problem description
The problem relates to the selection of insulation for the particular sections of pipe-runs and is signaled by the following diagnostic messages:
- sized insulation thickness (%.1f mm) lower than specified (%.1f mm),
- sized insulation thickness (%.1f mm) lower than required (%.1f mm).
These Warnings are displayed when there is no insulation of sufficient thickness in the selected insulation group.
Note: the Warnings do not block calculations.
Solution

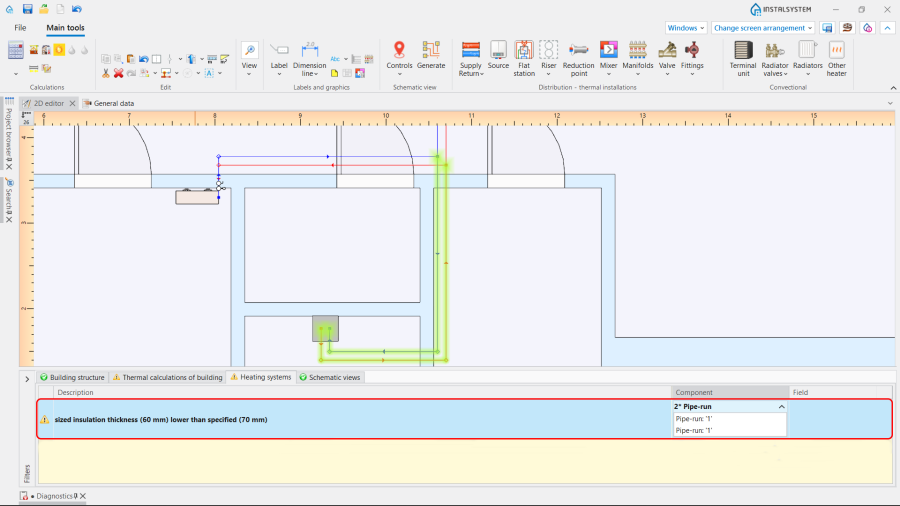

After clicking on the message in the Diagnostics window, the component that causes the problem is indicated.
There are two ways to eliminate the messages:
- Manual selection of insulation thickness for problematic places in the Data table window,
- Selection of another available group of insulation from the relevant catalogue. For more information, see: Using catalogues and catalogues data in the project
