How to eliminate: "Incorrect building contour"

From HelpSystem
Jump to navigation Jump to search
Product InstalSystem 5
Type of article TIP&TRICK
Source for translation 2021-04-30


Problem description

Problems are diagnosed by the program by means of message:

Incorrect building contour.

The message informs that because:

  • Building contour and Room touch each other with contours,
  • Building contour and Room overlap with contours,
  • Room touch each other with contours,
  • Room overlap with surfaces,
  • Room overlap with contours,
  • Building contour elements are placed one in the other.
  • Building contour overlap with contours.

Solution

  • Change the shape or placement of elements Building contour and\or Room' to eliminate the situations shown in the screenshots below.

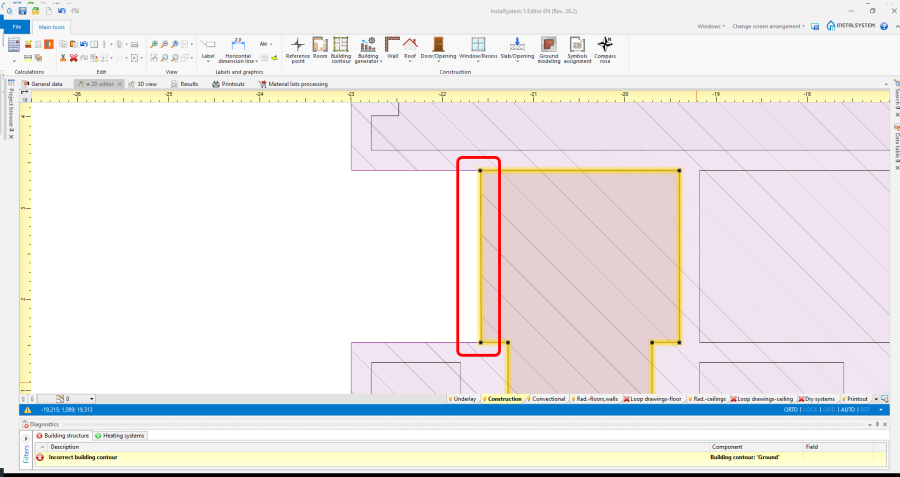

1. Building contour and Room touch each other with contours

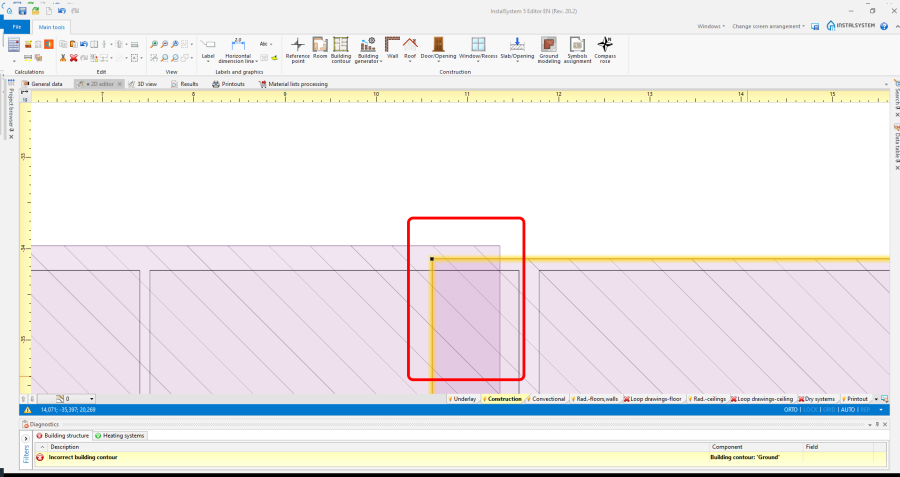

2. Building contour and Room overlap with contours

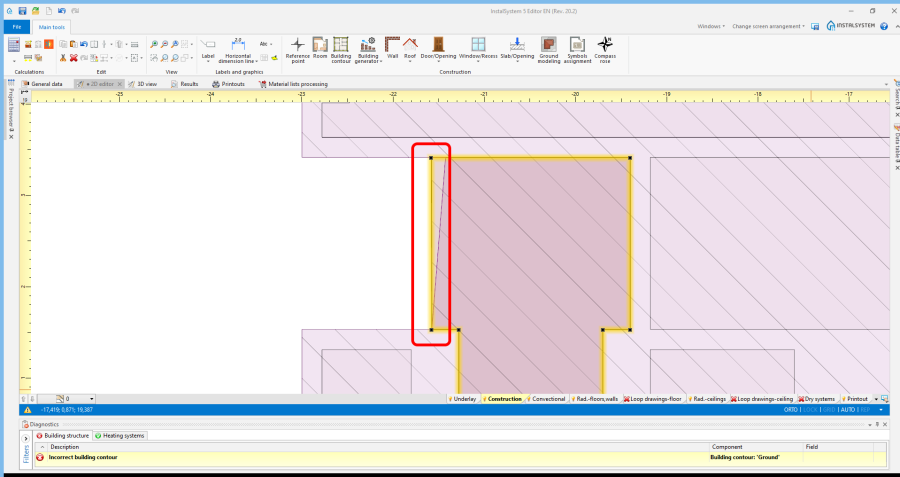

3. Room touch each other with contours

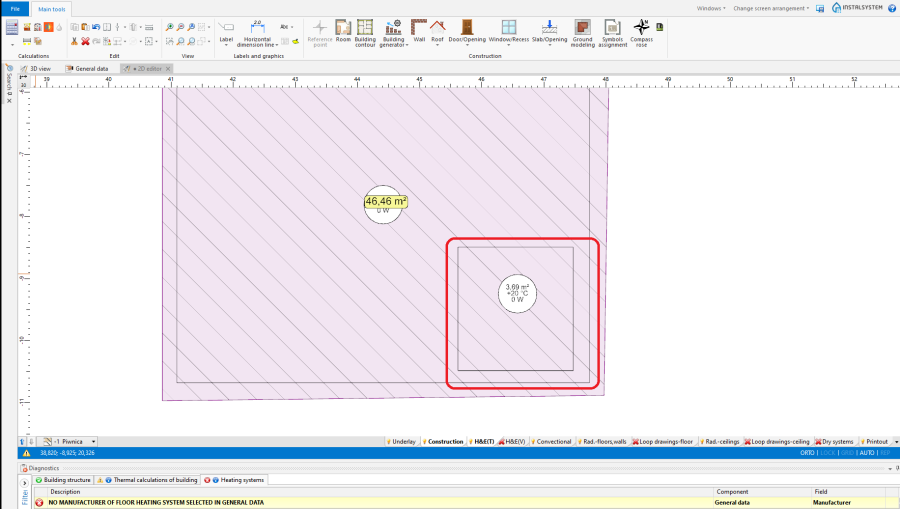

4. Room overlap with surfaces

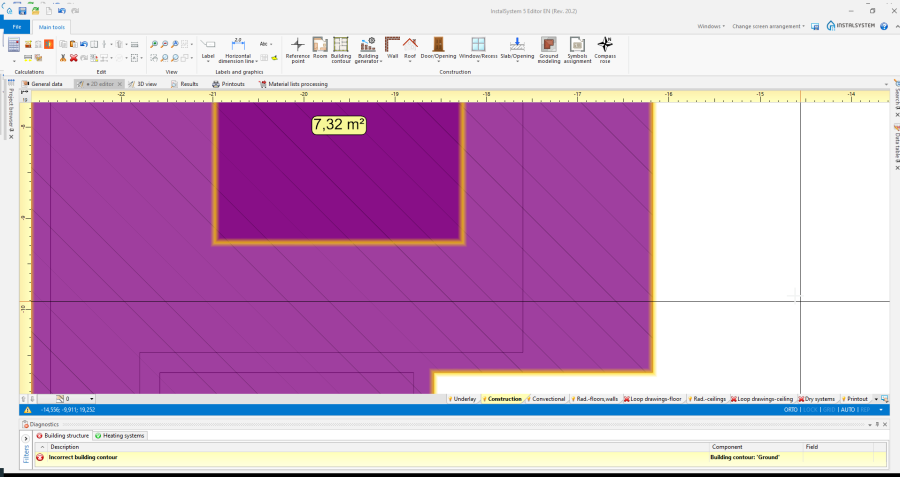

5. Room overlap with contours

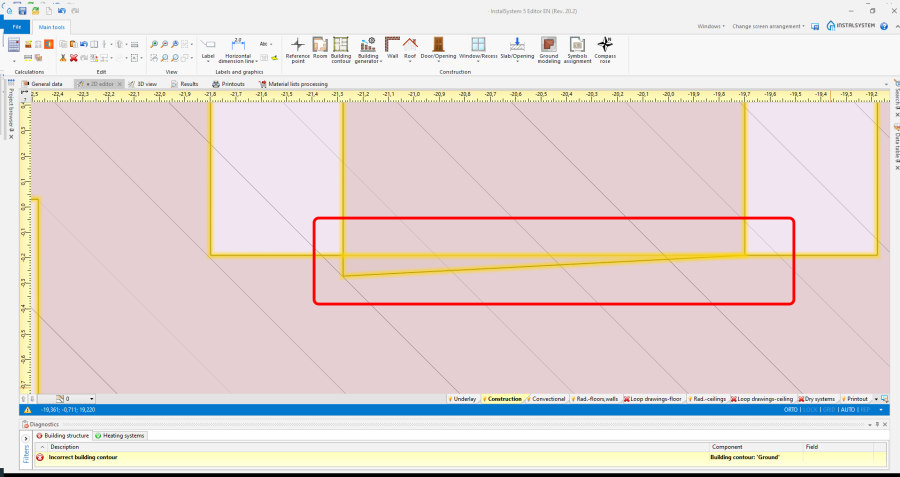

6. Building contour elements are placed one in the other

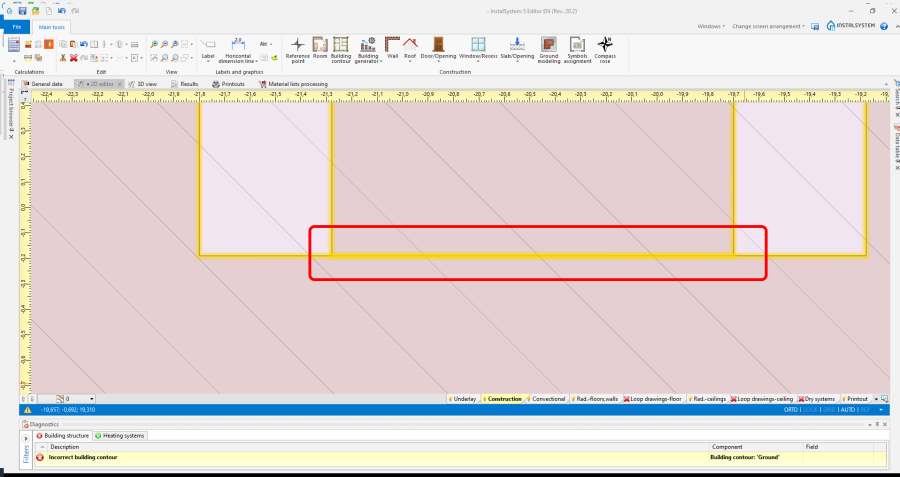

7. Building contour overlap with contours
