BIM - Export of installation and construction data from the project to IFC models

From HelpSystem
Jump to navigation Jump to search


Product InstalSystem 5
Type of article FUNCTION AND TOOL
Source for translation 2024-09-18


Description

BIM export from the InstalSystem 5 package is based on the IFC4 format, allowing interoperability with other BIM tools. The exported model can be processed in external programs such as ArchiCAD, BricsCAD, Revit, and others. Users can view IFC files in dedicated viewers or collaborate on CDE platforms, ensuring a smooth flow of data within project teams. Moreover, the IFC model can be used for clash detection in programs like Solibri or Navisworks, enabling the identification of potential conflicts between MEP installations and other building elements at an early stage of the project. The export is performed based on the 3D model and follows the IFC Reference View export method defined by buildingSMART.


InstalSystem 5 allows the export of various IFC4 class objects from the following domains: Heating systems, Cooling systems, Water supply systems, Sanitary drainage systems, Rainwater drainage systems, Ventilation systems and building structures. IFC model export can be done iteratively according to the BIM process. No file recalculation is required to obtain the IFC model (element data may be incomplete). This approach accelerates the design process for large models, allows focusing on selected parts of the model, and enables more efficient processing of smaller files among BIM process participants and fast data exchange for a given project stage. During the export operation, the user can specify which project elements should be exported and how many resulting IFC models should be created.

Videos related to the article



Location in program

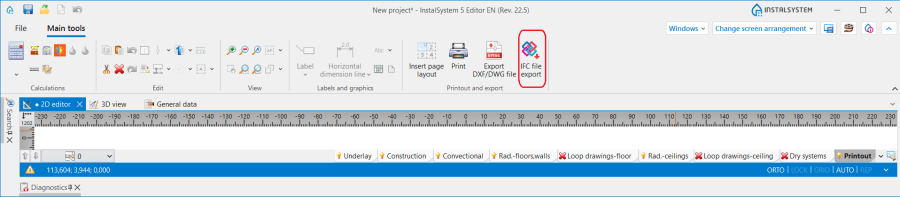

  • The IFC file export icon is available in the 2D editor and 3D view windows on the Main tools bar in the Printout and export section when the Printout editing scope is enabled.
    1. IFC file export

Examples of use

Export of an IFC file

In the IFC file export window, it is possible to enable or disable export of component labels, to specify precisely the range and location of components to be exported, to specify basic data about the exported IFC model(s), to select the sheets to be exported, and to specify the number of resulting IFC files.
IFC file export, depending on the project needs, can be performed at any stage of the design work, it is not necessary to calculate the file beforehand. When the operation is launched, a window appears in which the most important parameters for the operation must be set:

  • Worksheet - in the list, all available worksheets (storeys) in the design are presented, which can be freely selected or deselected depending on demand and the respective design stage in the BIM process.
  • Output file – in the list, the number, name and location of the file saved in IFC4 format are presented. The arrows can be used to create further result files. One worksheet can constitute one result file or belong to a file containing multiple worksheets.
  • Save in program settings - checking this will cause the last settings in the IFC file export window to be recalled the next time it is opened.

The IFC file export on the basis of any shared coordinates can be defined using the Compass rose element. The Compass rose element allows reading the Local Coordinate System (LCS) and setting the Global Coordinate System (GCS) in the following scope:

  • X coordinate (W/E);
  • Y coordinate (S/N);
  • Elevation;
  • North angle to Y axis.

The IFC file export can be based on (LCS), (GCS), or loaded IFC models into the project.


Export of labels to an IFC file

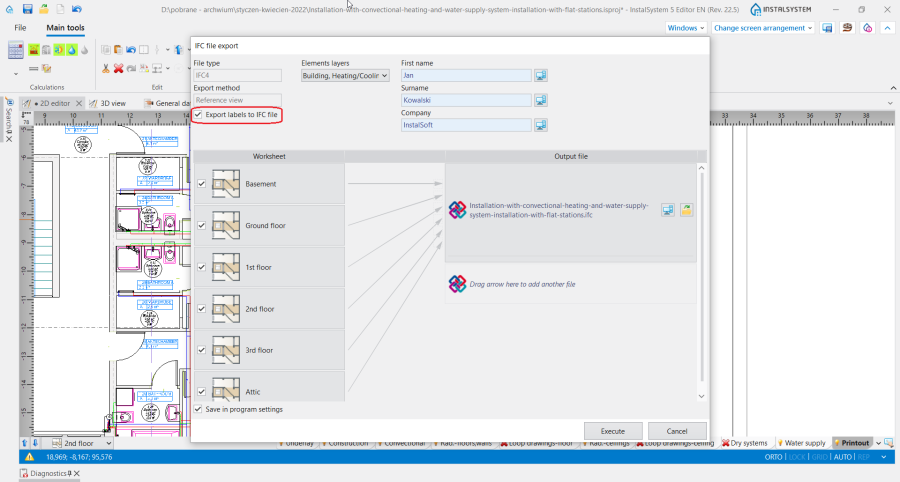

  • Checking the Export labels to IFC file box causes installation/construction component labels to be exported together with the IFC4 model as ifcAnnotation graphic components. This is a way of supplementing the IFC model with additional information in the form of labels and the information contained therein. Labels, if required, can be assigned to any component, which can be removed, modified or hidden by another participant in the BIM process using other software. If the content and number of labels is large, the ifcAnnotation components can significantly increase the size of the IFC4 file and its export time.
    2. Export labels to IFC file

Selecting component layers for export

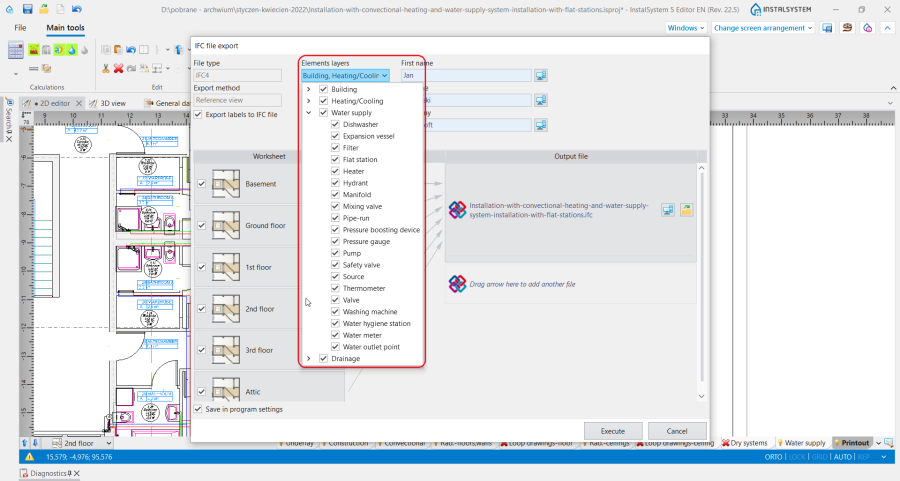

  • InstalSystem 5 allows full control over the range of objects exported to the IFC4 format. In the Elements layers field list, the objects available for export are assigned to the corresponding scopes.
    The mechanism for selecting objects/scopes identifies objects belonging to more than one scope (e.g. selecting the scope Water supply will select terminal units that belong to the scope Drainage even in the absence of a configuration that includes the scope Drainage). However, it is not possible to select components that are not part of the currently available licence configuration for export to IFC4 (except as described above).
    3. Selecting objects for export to an IFC model

Export of designer and company data

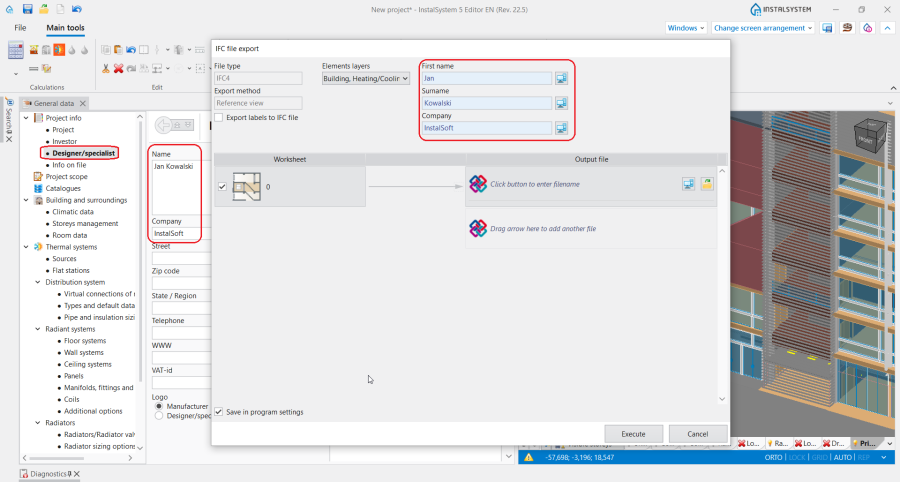

  • Along with the selected objects, information from the fields Name and Company available in the General data window in the Designer/specialist section is automatically propagated during export. After changing the status icon to a pencil, the data to be exported can be changed or deleted. The information is placed in the IfcPerson and IfcOrganization fields respectively.
    4. Designer/specialist in the IFC file export window

Parameters of components exported to an IFC model

All components exported from InstalSystem 5 have the following parameters complete in addition to their geometric representation (identical to the 3D model):

  • Unique GUID identifier,
  • ifcEntity - presenting the name of the component properly identified by other software, in accordance with the BuildingSmart definition (e.g. ifcPipeSegment in exported IFC file represents the component Pipe-run),
  • Name field - containing the name of the component used in InstalSystem 5 together with the value in the Symbol field (e.g. Double apartment manifold: 1),
  • Description field - containing a detailed description of the component to uniquely identify the component (e.g. the component has a description: : PV11_300 1600 mm (NEUTRAL RADIATORS); Size: 300×1600×60),
  • Selected elements are exported with additional parameters.
  • All components are exported along with the catalogue (part) number of the component, if such catalogue (part) code is included.

As the InstalSystem 5 software evolves, the ability to edit the parameterization of elements exported from the program is planned.

Additional information

Components excluded from export

Excluded from the possibility of exporting to an IFC file are InstalSystem 5 components that are not visualised in the 3D model, i.e.:

  • Pipe fittings - within the scopes: Heating systems, Cooling systems, Water supply systems, Ventilation systems.
    Note: Fittings within the Sanitary drainage systems and Rainwater drainage systems scopes are exported only when in the General data window, Drawing options section, Visualization of sewage fittings In 3D view field the Realistic option is checked.

Further processing of models exported from InstalSystem 5

Models generated in the InstalSystem 5 package can participate in data exchange through various types of platforms used to exchange data and information between participants in CDE (common data environment) type design processes. Models can be analysed and processed using third-party software, for example for the following purposes:

  • Conflict detection for the identification and reporting of errors in the BIM model,
  • Combining multiple files into one model,
  • Viewing and grouping of component data in the IFC model,
  • Support for the creation of an axonometric projection from an IFC model, further export of the IFC model to dwg3D format (e.g. using BricsCAD software),
  • Adding (to improve the quality of information flow) BCF comments that are linked to the IFC model,
  • Adding or deleting individual components or groups of components,
  • Converting the model into native components (e.g. Revit software after using the free Open BIM collaboration plug-in allows pipes exported from InstalSystem 5 to be converted into native Revit components (default pipe), so that selected pipe families can be assigned to these components and fittings and insulation can be added to the model.
