Central heating installation with radiators and underfloor system in detached house with basement

Product	InstalSystem 4
Type of article	{{{category_name1}}} [[{{{category3}}}|{{{category_name3}}}]]
Source for translation	IS 4.13

SAMPLE PROJECT IN INSTALSYSTEM

Project files How to calculate downloaded file?	Final state, ISB
Designed with	InstalSystem 4.13 Rev. 16-10
Required modules	Instal-therm R Instal-therm H
Project range	Central heating with radiators and underfloor system
Used catalogues	Neutral bathroom radiators Neutral steel panel radiators Neutral steel panel radiators VK PEX/AL/PEX System (pipes and fittings) Neutral valves cataloge - typical construction VK - collective catalogue Basic underfloor heating systems Standard insulation catalogue
Type of building	Single-family, with basement, 3-storey
Building structure	Base Basement, DWG Base Groundfloor, DWG Base Firtsfloor, DWG
Drawings range	Plan view, Schematic view
Prepared by	www.instalsoft.com
Legal disclaimer	The whole file or parts of the project may be copied
Calculation results	Exported calculation results, Excel Printed calculation results, Adobe

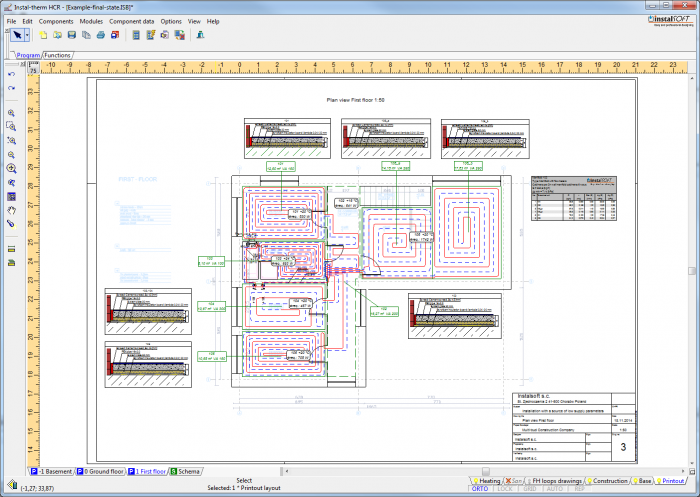

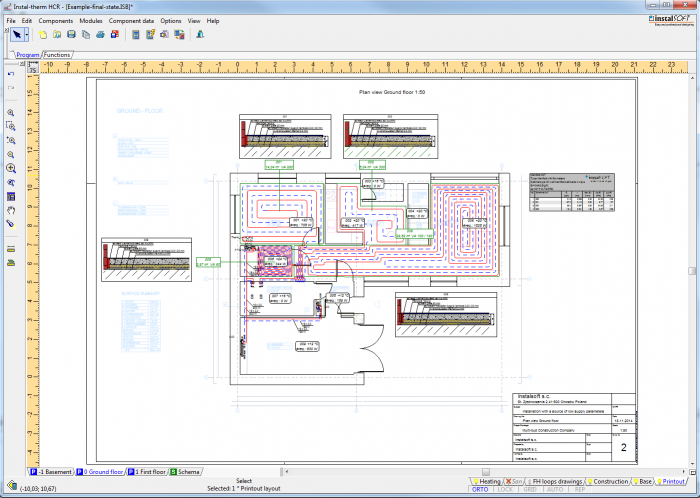

Drawing results	Plan view Basement, DWG Plan view Groundfloor, DWG Plan view Firstfloor, DWG Schematic view, DWG Plan view Basement, jpg Plan view Ground floor, jpg Plan view First floor, jpg

Project description

Example illustrates heating installation designed for the source parameters of 60/40 Celsius degrees. Rooms for the most frequent human presence are equipped with a underfloor heating, while bathrooms, the garage and the basement are heated by radiators. The source is located in the basement, from where the medium is supplied to the receivers by two separate stacks. One of the stacks supplies radiators on all floors, the second stack supplies underfloor heating manifolds. The stack for underfloor heating manifolds is supplied with use of mixer, to ensure supply temperature at a suitable level.
