Water supply system and radiant heating system with use of flat stations in a residental building (example for the lesson) - multi-branch project

Product	InstalSystem 5
Type of article	SAMPLE PROJECT
Source for translation	2020-02-23

Project description

This article presents a project file of installation using flat stations as a connection point for an apartment heating and sanitary system.
The project is an example for the following lesson: Designing installations with flat stations. The lesson describes how to make such a project step by step.

•
•

Files to download and project information

Project files How to calculate downloaded file?	Initial state, isproj Installation containing flat stations in a multifamily building, isproj
Designed with	InstalSystem 5 Rev. 28.8
Required modules	Flat stations Heating systems Radiant systems Radiators sizing Tap water systems
Project range	heating systems, sanitary systems
Used catalogues	Basic radiant systems Neutral radiators Brass, cast iron and steel pipe couplings and fittings Copper pipes and fittings EN 1057 PE-X/AL/PE-RT pipes and fittings Basic insulation catalogue Neutral valves catalogue - typical construction Media Standard water taps and whiteware Flat stations - sample solutions
Type of building	residential building with basement 4-storey

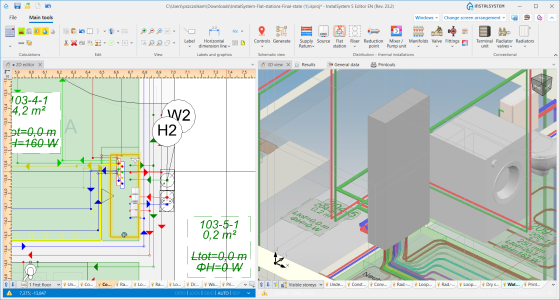

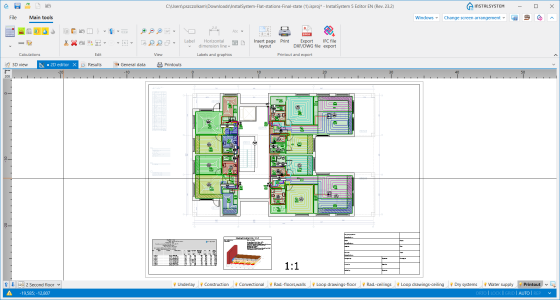

Building structure	Underlay basement, dwg Underlay groundfloor, dwg Underlay floor, dwg Underlay attic, dwg
Drawings range	Plan drawings
Prepared by	www.instalsoft.com
Legal disclaimer	Copying of entire project and of its fragments allowed
Calculation results	Full calculation results, xls Full printout, pdf General heating results, pdf General water supply system results, pdf Bill of materials, pdf
Drawing results	Basement, dwg Groundfloor, dwg Floor, dwg Basement, pdf Ground floor, pdf Floor, pdf
