Radiant steel ceiling panels installation in commercial building (example for the lesson)

Product	InstalSystem 5
Type of article	SAMPLE PROJECT
Source for translation	2020-01-20

Project description

This article presents a simple project file of heating installation with radiant ceiling panels in commercial building.
The project is an example for the following lesson: Radiant steel ceiling panels. The lesson describes how to make such a project step by step.

•
•

Files to download and project information

Project files How to calculate downloaded file?	Initial state, isproj System with radiant ceiling panels in a public building, isproj
Designed with	InstalSystem 5 Rev. Beta 33
Required modules	Base module Heating systems Panel systems
Project range	Radiant heating
Used catalogues	Basic radiant systems Neutr. ceiling and wall panels Brass, cast iron and steel fittings Copper pipes and fittings acc. to EN 1057 Miscellaneous fittings any manufacturer Standard insulation catalogue Neutral valves catalogue - typical design

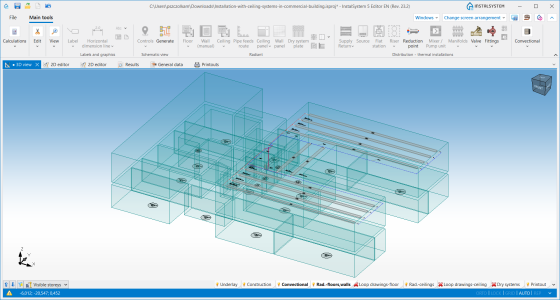

Type of building	commercial building with basement 2-storey
Building structure	Ground floor base drawing, dwg First floor base drawing, dwg

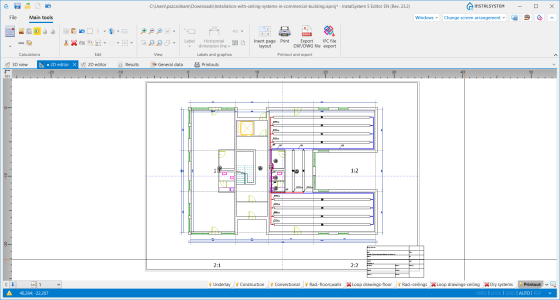

Drawings range	Plan drawings
Prepared by	www.instalsoft.com
Legal disclaimer	Copy all or fragments allowed
Calculation results	Complete range of calculation results, xls Complete range of available printouts, pdf Heating calculation results, pdf Bill of materials, pdf
Drawing results	Ground floor, dwg
