Radiant heating floor and wall system in single family building (example for the lesson)

Product	InstalSystem 5
Type of article	SAMPLE PROJECT
Source for translation	2020-02-23

Project description

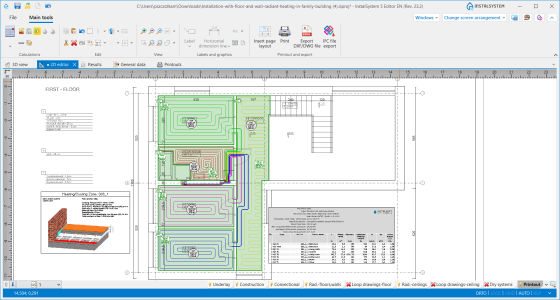

This article presents a simple project file of radiant heating and wall installation in single-family building.
The project is an example for the following lesson: Designing of radiant heating floor and wall installation. The lesson describes how to make such a project step by step.

•
•

Files to download and project information

Project files How to calculate downloaded file?	Floor and wall radiant heating system in single-family house, isproj
Designed with	InstalSystem 5 Rev. Beta 30
Required modules	Base module Heating systems Radiant systems
Project range	Radiant heating
Used catalogues	Basic radiant systems Brass and steel pipe couplings and fittings Copper pipes and fittings EN 1057 Standard mixers, pump and bypass units Standard insulation catalogue Neutral valves catalogue - typical construction
Type of building	single-family no basement 2-storey
Building structure	Base drawing ground floor, dwg Base drawing first floor, dwg
Drawings range	Plan drawings
Prepared by	www.instalsoft.com
Legal disclaimer	Copying of entire project and of its fragments allowed
Calculation results	Full printout, xls Full printout, pdf Radiant heating calculation results, pdf Bill of materials, pdf Installation parameters, pdf
Drawing results	Ground floor, dwg First floor, dwg Ground floor, pdf First floor, pdf
