Radiant cooling and panel systems in multifunctional building

From HelpSystem
Jump to navigation Jump to search


Product InstalSystem 5
Type of article SAMPLE PROJECT
Source for translation 2021-12-21


Project description

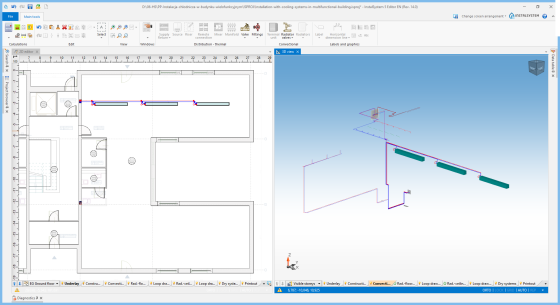

Project illustrates an example how to design radiant cooling installation and convective installation in a mixed building type. Source, which is common for all elements, gives temperature 9°C. It directly feeds terminal unit with imposed pressure drop simulating passive chilled beams. It supplies cooling walls in the hall by mixer with temperature 18°C.

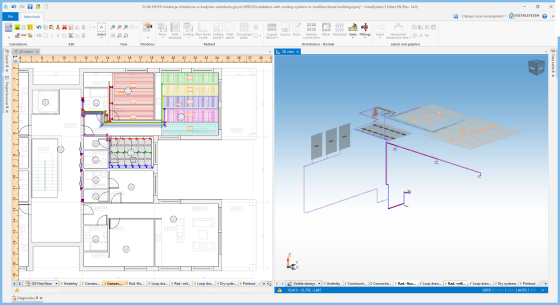

At the same time, medium is delivered to a manifold with mixing set, which feeds with temperature 18°C:

  • ceiling panels in serial-parallel system (Tichelmann system with common connection to manifold),
  • wall pannel parallel connected in Tichelmann system,
  • cooling ceiling parallel connected in Tichelmann system,
  • cooling ceiling with classic feeds generates automatically.

Files to download and project information

Project files

How to calculate downloaded file?

Installation with cooling systems in multifunctional building, isproj
Designed with InstalSystem 5
Rev. GOLD 14.0
Required modules Base module
Radiant systems
Heating systems
Cooling systems
Project range Radiant cooling and panel cooling systems
Used catalogues

Basic radiant systems
Neutral ceiling and wall panels
Brass and steel pipe couplings and fittings
Copper pipes and fittings EN 1057
Miscellaneous fittings of any make
PEX (pipe and fittings) acc. to EN ISO 15875
Standard mixers, pump and bypass units
Standard insulation catalogue
Media
Neutral valves catalogue-typical construction

Type of building multifunctional building
with basement
4-storey
Building structure Base drawing basement, dwg
Base drawing ground floor, dwg
Base drawing first floor, dwg
Base drawing first floor, dwg
Drawings range Plan view
Prepared by Logo-instalsoft-new.png

www.instalsoft.com
Legal disclaimer The whole file or parts of the project may be copied
Calculation results Full printout, xls
Full printout, pdf
General cooling results, pdf
Bill components, pdf
Installation parameter, pdf
Drawing results Basement, dwg
Ground floor, dwg
First floor, dwg
Attic floor, dwg
Basement, pdf
Ground floor, pdf
First floor, pdf
Attic floor, pdf
