| Product | InstalSystem 5 |
| Type of article | TIP&TRICK |
| Source for translation | 2025-03-05 |
Problem description
To simplify and speed up the design process, to increase its efficiency and comfort, the software provides the use of key combinations and function keys.
Solution
| Key combinations | Default action |
|---|---|
| Ctrl+A | Select all |
| Ctrl+C | Copy |
| Ctrl+E | Export DXF/DWG file |
| Ctrl+F | Open / close the Search window |
| Ctrl+G | Import from gbXML |
| Ctrl+I | Import underlay |
| Ctrl+M | Move |
| Ctrl+N | New project |
| Ctrl+O | Open project |
| Ctrl+P | Display the circuit to which the selected item belongs |
| Ctrl+S | Save project |
| Ctrl+V | Paste |
| Ctrl+X | Cut |
| Ctrl+Y | Redo recent undone operation |
| Ctrl+Z | Undoes last operation |
| Ctrl+Shift+F10 | Open Interactive radiant systems calculations table |
| Ctrl+F4 | Close project |
| Alt+F4 | Exit program |
| Alt+1 | Visible in 3D view |
| Alt+2 | Hide in 3D view |
| Shift+F1 | Open / close the Products window |
| Shift+F2 | Check connections |
| Shift+F4 | Open / close the additional 2D editor window |
| Shift+F5 | Show all from active edit scope |
| Shift+F11 | Open / close the Printouts window |
| Function keys | Default action |
|---|---|
| F1 | Referring to the HelpSystem |
| F2 | Repeat last value |
| F3 | Insert the last element used in the project |
| F4 | Open / close the 2D editor window |
| F5 | Show all |
| F7 | Open / close the General data window |
| F8 | Open / close the Diagnostics window |
| F9 | Open / close the 3D view window |
| F10 | Run Calculations |
| F11 | Open / close the Results window |
| F12 | Open / close the Data table |
| Delete | Remove marked components |
| PageDown | Switch to worksheet downwards |
| PageUp | Switch to worksheet upwards |
Note: The shortcuts above are default and can be edited in the program settings. For more information, see: Settings.

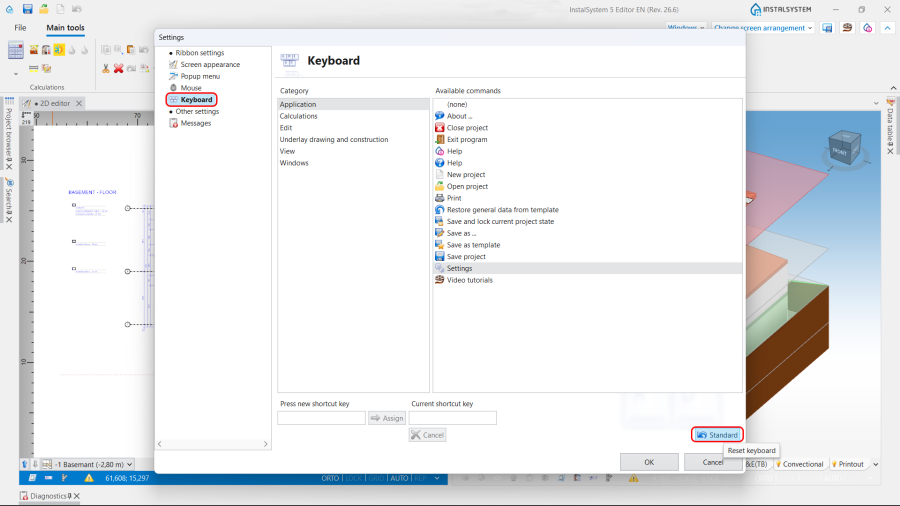

To restore standard keyboard configuration press Standard.
