How to eliminate: "Automatic division of H/C Zone not possible"

From HelpSystem
Jump to: navigation, search



Product InstalSystem 5
Type of article TYPICAL PROBLEM
Source for translation IS 5.0 Beta 31


Problem description

Problems associated with the automatic division of: Heating/Cooling Zone into Heating/Cooling area components are diagnosed by the program by means of message:

Automatic division of H/C Zone not possible.

The message informs that the component: Heating/Cooling Zone could not be divided automatically because:

  • Heating/Cooling Zone is too narrow,
  • resultant number of components: Heating/Cooling area upon division is too large,
  • line of division into Heating/Cooling area components crosses the Peripheral zone (PZ) parallel to it,
  • Pipe feeds route is arranged incorrectly.

Solution

  • Change criterion of dividing components: Heating/Cooling Zone.

  • Change width and/or orientation of division so that it is not parallel to Peripheral zone (PZ).

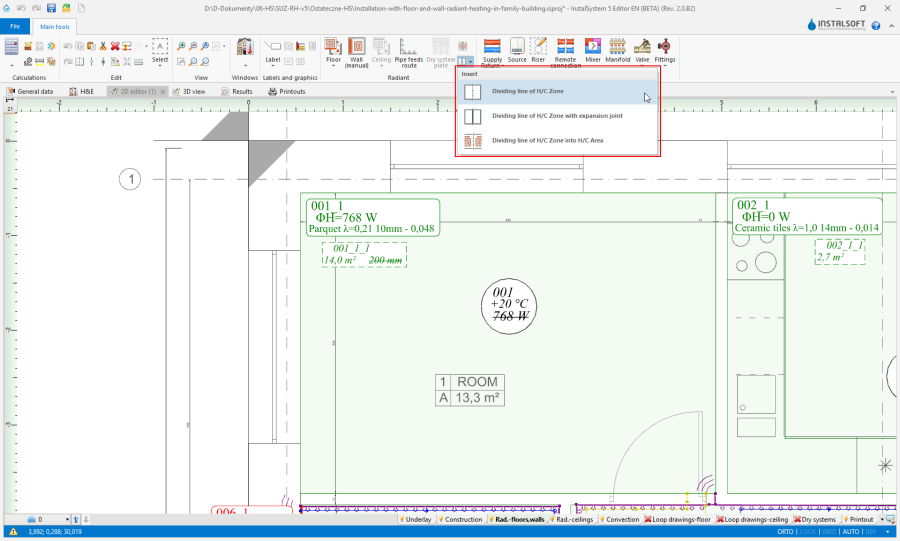

  • Manually divide Heating/Cooling Zone using tools available in the program.
    1. Divide zone ...

  • Change arrangement of Pipe feeds route.
